Output Files

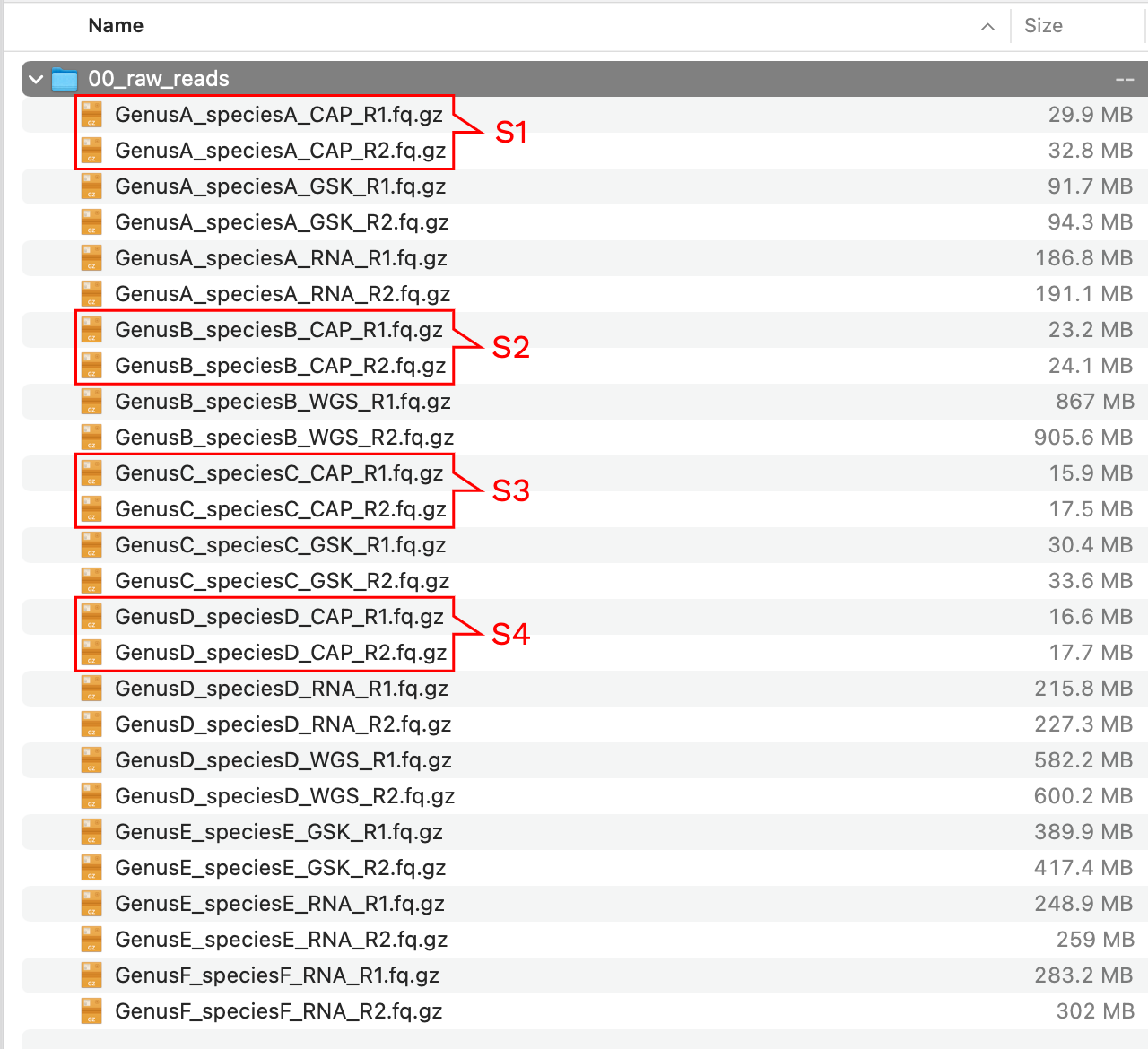

Imagine we start with a directory called 00_raw_reads with the following content:

Raw reads Raw reads

We have a samples with different data types, to distinguish them we added _CAP to the samples where hybridization-capture was used, _WGS for high-coverage whole genome sequencing, _RNA for RNA-Seq reads, and _GSK for genome skimming data (notice also the difference in file sizes). For this example, we only want to clean the samples in red rectangles corresponding to capture data. We run the following Captus command:

captus_assembly clean --reads ./00_raw_reads/*_CAP_R?.fq.gz

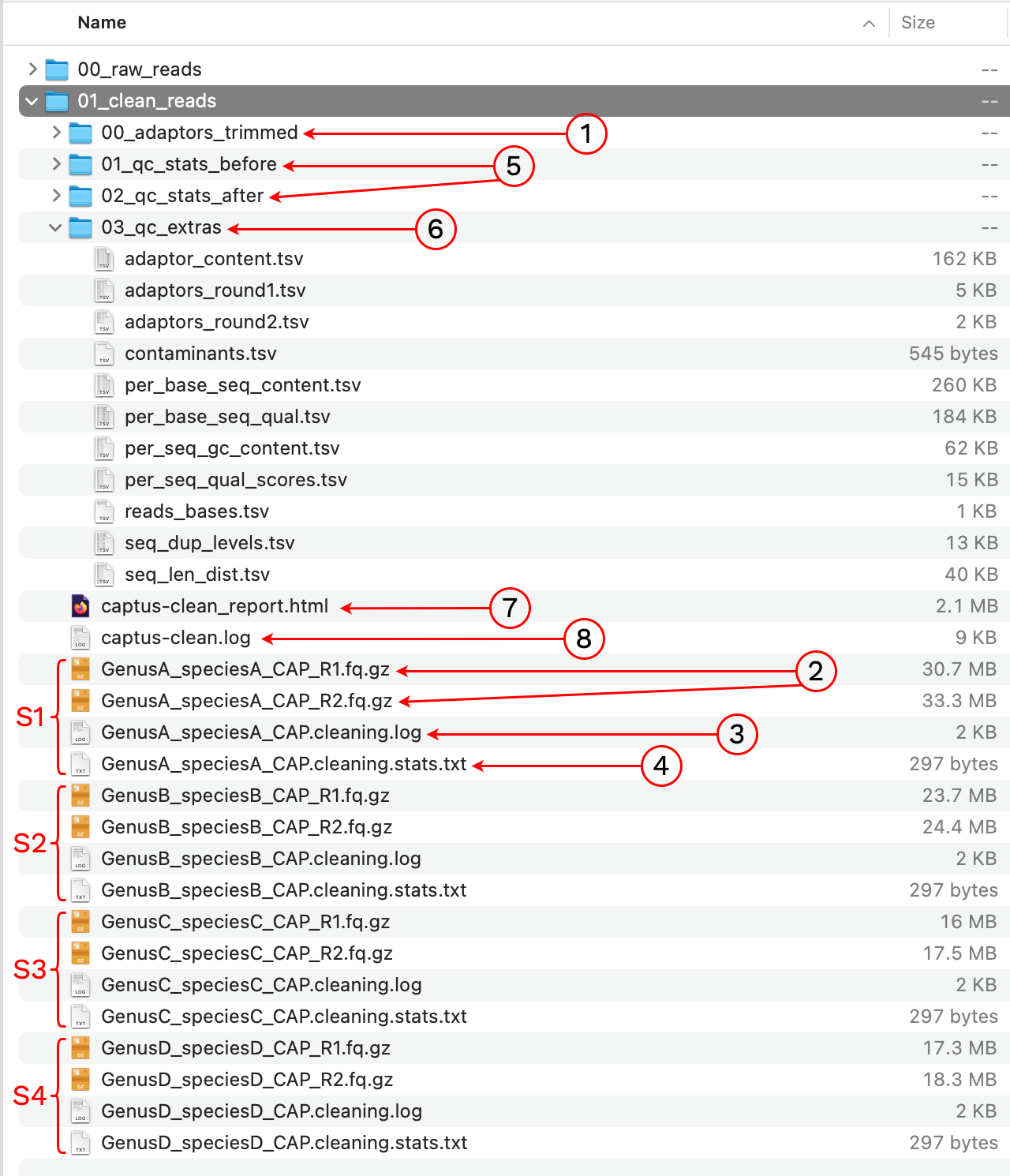

Notice we are using default settings, the only required argument is the location of the raw reads. The output was written to a new directory called 01_clean_reads. Let’s take a look at the contents:

Clean reads Clean reads

1. [sample]_R1.fq.gz, [sample]_R2.fq.gz

In case of paired-end input we will have a pair of files like in the image, the forward reads are indicated by _R1 and the reverse reads by _R2. Single-end input will only return forward reads. Wikipedia’s entry for the format describes it in more detail.

FASTQ format FASTQ format

2. [sample].cleaning.log

This file contains the cleaning command used for bbduk.sh as well the data shown as screen output, this and other information is compiled in the Cleaning report.

Captus' BBDuk Command:
  bbduk.sh -Xmx16220m threads=8 in=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP_R#.fq.gz out=/tutorial/01_clean_reads/GenusA_speciesA_CAP_R#.fq.gz ref=/software/GitHub/Captus/data/phix174_ill.ref.fa.gz,/software/GitHub/Captus/data/sequencing_artifacts.fasta k=31 hdist=1 qtrim=lr trimq=13 maq=16 ftl=0 ftr=0 minlength=21 maxns=5 ziplevel=5 overwrite=t stats=/tutorial/01_clean_reads/GenusA_speciesA_CAP.cleaning.stats.txt 2>/tutorial/01_clean_reads/GenusA_speciesA_CAP.stdout.log


Executing jgi.BBDuk [-Xmx16220m, threads=8, in=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP_R#.fq.gz, out=/tutorial/01_clean_reads/GenusA_speciesA_CAP_R#.fq.gz, ref=/software/GitHub/Captus/data/phix174_ill.ref.fa.gz,/software/GitHub/Captus/data/sequencing_artifacts.fasta, k=31, hdist=1, qtrim=lr, trimq=13, maq=16, ftl=0, ftr=0, minlength=21, maxns=5, ziplevel=5, overwrite=t, stats=/tutorial/01_clean_reads/GenusA_speciesA_CAP.cleaning.stats.txt]
Version 38.95

Set threads to 8
0.018 seconds.
Initial:
Memory: max=17007m, total=17007m, free=16987m, used=20m

Added 8403228 kmers; time: 	1.021 seconds.
Memory: max=17007m, total=17007m, free=16612m, used=395m

Input is being processed as paired
Started output streams:	0.062 seconds.
Processing time:   		3.655 seconds.

Input:                  	733430 reads 		110292758 bases.
Contaminants:           	0 reads (0.00%) 	0 bases (0.00%)
QTrimmed:               	127322 reads (17.36%) 	515529 bases (0.47%)
Low quality discards:   	13310 reads (1.81%) 	1903218 bases (1.73%)
Total Removed:          	13340 reads (1.82%) 	2418747 bases (2.19%)
Result:                 	720090 reads (98.18%) 	107874011 bases (97.81%)

Time:                         	4.753 seconds.
Reads Processed:        733k 	154.32k reads/sec
Bases Processed:        110m 	23.21m bases/sec

3. [sample].cleaning.stats.txt

List of contaminants found by bbduk.sh in the input reads, sorted by abundance.

#File	/tutorial/01_clean_reads/00_adaptors_trimmed/GenusX_speciesX_CAP_R1.fq.gz	/tutorial/01_clean_reads/00_adaptors_trimmed/GenusX_speciesX_CAP_R2.fq.gz
#Total	60621406
#Matched	25	0.00004%
#Name	Reads	ReadsPct
gi|9626372|ref|NC_001422.1| Coliphage phiX174, complete genome	14	0.00002%
contam_111	8	0.00001%
contam_32	1	0.00000%
contam_76	1	0.00000%
contam_87	1	0.00000%

4. captus-assembly_clean.report.html

This is the final Cleaning report, summarizing statistics across all samples analyzed.

5. captus-assembly_clean.log

This is the log from Captus, it contains the command used and all the information shown during the run. If the option --show_less was enabled, the log will also contain all the extra detailed information that was hidden during the run.

6. 00_adaptors_trimmed

This is an intermediate directory that contains the FASTQ files without adaptors, prior to quality-trimming and filtering. The directory also stores bbduk.sh commands and logs for the adaptor trimming stage. If the option --keep_all was enabled the FASTQs from this intermediate are kept after the run, otherwise they are deleted.

[sample].round1.log

Captus' BBDuk Command for BOTH rounds:
  bbduk.sh -Xmx8110m threads=8 ktrim=r minlength=21 interleaved=f trimpairsevenly=t trimbyoverlap=t overwrite=t ref=/software/GitHub/Captus/data/adaptors_combined.fasta in=/tutorial/00_raw_reads/GenusA_speciesA_CAP_R#.fq.gz out=stdout.fq ftr=0 k=21 mink=11 hdist=2 stats=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.round1.stats.txt 2>/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.stdout1.log | bbduk.sh -Xmx8110m threads=8 ktrim=r minlength=21 interleaved=f trimpairsevenly=t trimbyoverlap=t overwrite=t ref=/software/GitHub/Captus/data/adaptors_combined.fasta in=stdin.fq out=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP_R#.fq.gz k=19 mink=9 hdist=1 stats=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.round2.stats.txt 2>/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.stdout2.log


ROUND 1 LOG:
Executing jgi.BBDuk [-Xmx8110m, threads=8, ktrim=r, minlength=21, interleaved=f, trimpairsevenly=t, trimbyoverlap=t, overwrite=t, ref=/software/GitHub/Captus/data/adaptors_combined.fasta, in=/tutorial/00_raw_reads/GenusA_speciesA_CAP_R#.fq.gz, out=stdout.fq, ftr=0, k=21, mink=11, hdist=2, stats=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.round1.stats.txt]
Version 38.95

Set threads to 8
Set INTERLEAVED to false
maskMiddle was disabled because useShortKmers=true
0.030 seconds.
Initial:
Memory: max=8503m, total=8503m, free=8478m, used=25m

Added 11201253 kmers; time: 	3.185 seconds.
Memory: max=8503m, total=8503m, free=7967m, used=536m

Input is being processed as paired
Started output streams:	0.044 seconds.
Processing time:   		8.051 seconds.

Input:                  	733778 reads 		110800478 bases.
KTrimmed:               	20580 reads (2.80%) 	393486 bases (0.36%)
Trimmed by overlap:     	1870 reads (0.25%) 	10642 bases (0.01%)
Total Removed:          	330 reads (0.04%) 	404128 bases (0.36%)
Result:                 	733448 reads (99.96%) 	110396350 bases (99.64%)

Time:                         	11.312 seconds.
Reads Processed:        733k 	64.87k reads/sec
Bases Processed:        110m 	9.79m bases/sec

[sample].round1.stats.txt

#File	/tutorial/00_raw_reads/GenusA_speciesA_CAP_R1.fq.gz	/tutorial/00_raw_reads/GenusA_speciesA_CAP_R2.fq.gz
#Total	733778
#Matched	11733	1.59898%
#Name	Reads	ReadsPct
Reverse_adaptor	1899	0.25880%
PhiX_read2_adaptor	1109	0.15114%
TruSeq_Adaptor_Index_1_6	1018	0.13873%
pcr_dimer	675	0.09199%
Forward_filter	608	0.08286%
Illumina 3p RNA Adaptor	595	0.08109%
I5_Nextera_Transposase_1	475	0.06473%
PhiX_read1_adaptor	468	0.06378%
Nextera_LMP_Read2_External_Adaptor	446	0.06078%
Reverse_filter	419	0.05710%
.
.
.
TruSeq_Adaptor_Index_9	1	0.00014%

[sample].round2.log

Captus' BBDuk Command for BOTH rounds:
  bbduk.sh -Xmx8110m threads=8 ktrim=r minlength=21 interleaved=f trimpairsevenly=t trimbyoverlap=t overwrite=t ref=/software/GitHub/Captus/data/adaptors_combined.fasta in=/tutorial/00_raw_reads/GenusA_speciesA_CAP_R#.fq.gz out=stdout.fq ftr=0 k=21 mink=11 hdist=2 stats=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.round1.stats.txt 2>/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.stdout1.log | bbduk.sh -Xmx8110m threads=8 ktrim=r minlength=21 interleaved=f trimpairsevenly=t trimbyoverlap=t overwrite=t ref=/software/GitHub/Captus/data/adaptors_combined.fasta in=stdin.fq out=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP_R#.fq.gz k=19 mink=9 hdist=1 stats=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.round2.stats.txt 2>/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.stdout2.log


ROUND 2 LOG:
Executing jgi.BBDuk [-Xmx8110m, threads=8, ktrim=r, minlength=21, interleaved=f, trimpairsevenly=t, trimbyoverlap=t, overwrite=t, ref=/software/GitHub/Captus/data/adaptors_combined.fasta, in=stdin.fq, out=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP_R#.fq.gz, k=19, mink=9, hdist=1, stats=/tutorial/01_clean_reads/00_adaptors_trimmed/GenusA_speciesA_CAP.round2.stats.txt]
Version 38.95

Set threads to 8
Set INTERLEAVED to false
maskMiddle was disabled because useShortKmers=true
Forcing interleaved input because paired output was specified for a single input file.
0.028 seconds.
Initial:
Memory: max=8503m, total=8503m, free=8478m, used=25m

Added 322384 kmers; time: 	0.239 seconds.
Memory: max=8503m, total=8503m, free=8469m, used=34m

Input is being processed as paired
Started output streams:	0.056 seconds.
Processing time:   		11.134 seconds.

Input:                  	733448 reads 		110396350 bases.
KTrimmed:               	10720 reads (1.46%) 	103592 bases (0.09%)
Trimmed by overlap:     	0 reads (0.00%) 	0 bases (0.00%)
Total Removed:          	18 reads (0.00%) 	103592 bases (0.09%)
Result:                 	733430 reads (100.00%) 	110292758 bases (99.91%)

Time:                         	11.447 seconds.
Reads Processed:        733k 	64.07k reads/sec
Bases Processed:        110m 	9.64m bases/sec

[sample].round2.stats.txt

#File	stdin.fq
#Total	733448
#Matched	5386	0.73434%
#Name	Reads	ReadsPct
PhiX_read2_adaptor	781	0.10648%
Forward_filter	374	0.05099%
I5_Nextera_Transposase_1	373	0.05086%
Reverse_adaptor	367	0.05004%
RNA_Adaptor_(RA3)_part_#_15013207	361	0.04922%
Reverse_filter	327	0.04458%
PhiX_read1_adaptor	267	0.03640%
Stop_Oligo_(STP)_8	249	0.03395%
Nextera_LMP_Read2_External_Adaptor	215	0.02931%
Illumina 3p RNA Adaptor	190	0.02591%
.
.
.
I5_Primer_Nextera_XT_Index_Kit_v2_S520	1	0.00014%

7. 01_qc_stats_before, 02_qc_stats_after

These directories contain the results from either Falco or FastQC, organized in a subdirectory per FASTQ file analyzed.

8. 03_qc_extras

This directory contains all the tab-separated-values tables needed to build the Cleaning report. We provide them separately to allow the user more detailed analyses.

Table Description
adaptor_content.tsv Adaptor content percentages, parsed from Falco’s orFastQC’s output
adaptors_round1.tsv Reads/bases after first round of adaptor removal, parsed from bbduk.sh’s logs
adaptors_round2.tsv Reads/bases after second round of adaptor removal, parsed from bbduk.sh’s logs
contaminants.tsv Contaminant content, compiled from bbduk.sh’s logs
per_base_seq_content.tsv Per base sequence content, parsed from Falco’s orFastQC’s output
per_base_seq_qual.tsv Per base sequence quality, parsed from Falco’s orFastQC’s output
per_seq_gc_content.tsv GC content per sequence, parsed from Falco’s orFastQC’s output
per_seq_qual_scores.tsv Per sequence quality scores, parsed from Falco’s orFastQC’s output
reads_bases.tsv Reads/bases after quality filtering and contaminant removal, parsed from bbduk.sh’s logs
seq_dup_levels.tsv Sequence duplication levels, parsed from Falco’s orFastQC’s output
seq_len_dist.tsv Sequence length distribution, parsed from Falco’s orFastQC’s output

Created by Edgardo M. Ortiz (06.08.2021)
Last modified by Edgardo M. Ortiz (30.05.2022)
